HZS75 Concrete Batching Plant


1. Description of HZS75 Concrete Batching Plant

HZS75 Concrete Batching Plant has been widely used in the domestic and abroad, as well as earning a perfect reputation in the construction field.

It adopts the control technology with newest design concept, for example: electric weighing, computer control, digital display, etc., Electric weighing system has been equipped with buffer device and auto compensation function and high precision measure.

2. Features of HZS75 Concrete Batching Plant:

1. Small-scale HZS75 concrete batching plant, which is suitable for small projects, small yards, etc.

2. Concrete mixer features JS1500 twin shaft compulsory concrete mixer.

3. Small occupied area.

4. Easy to install and disassemble and convenient to transport.

5. Less investment, lower noise

3.Parameter

   Specification    HZS75
   Productivity    75m3/h
   Capacity of mixer    1.5m3
   Discharge height    3.8m
   Aggregiate bin    3-4
   Capacity of aggregate bin    15m3
   Max. weighing value of aggregate    6000kg
   Max. weighing value of cement    1000kg
   Max. weighing value of water    500kg
   Max. weighing value of additive    50kg
   Feeding type    Skip hopper
   Cement silo    100T
   Screw conveyor    Optional
   Control mode    Semi/full automatic control

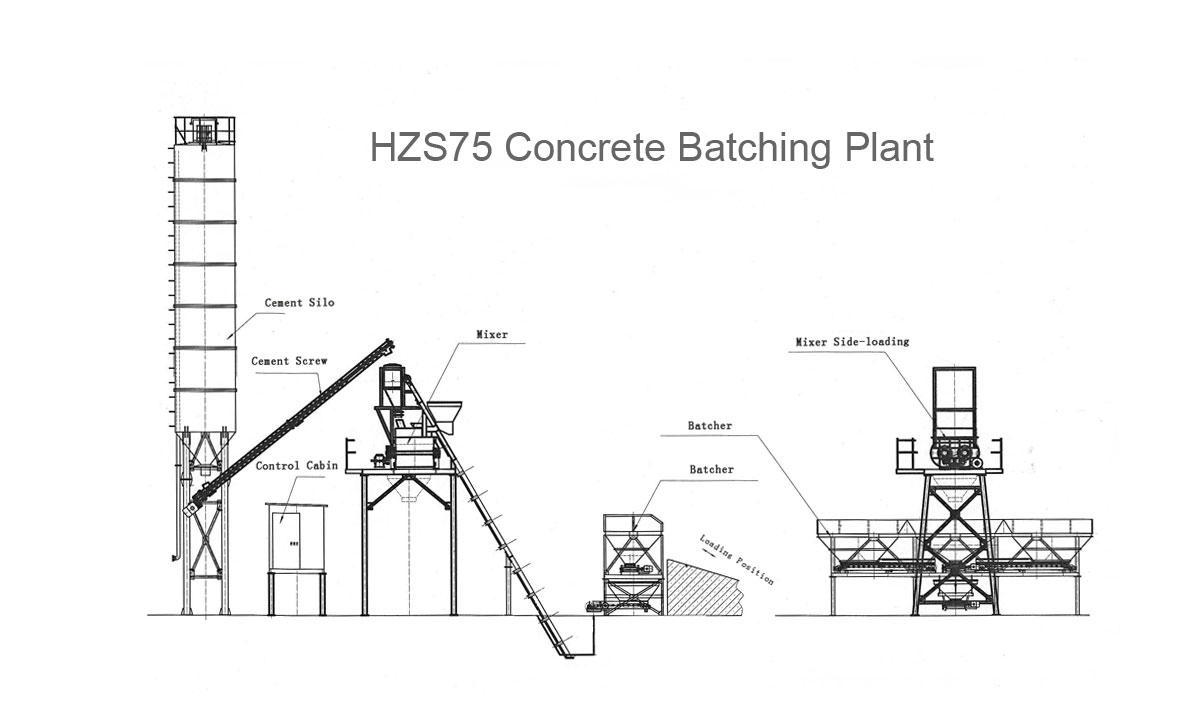

4.Drawing
