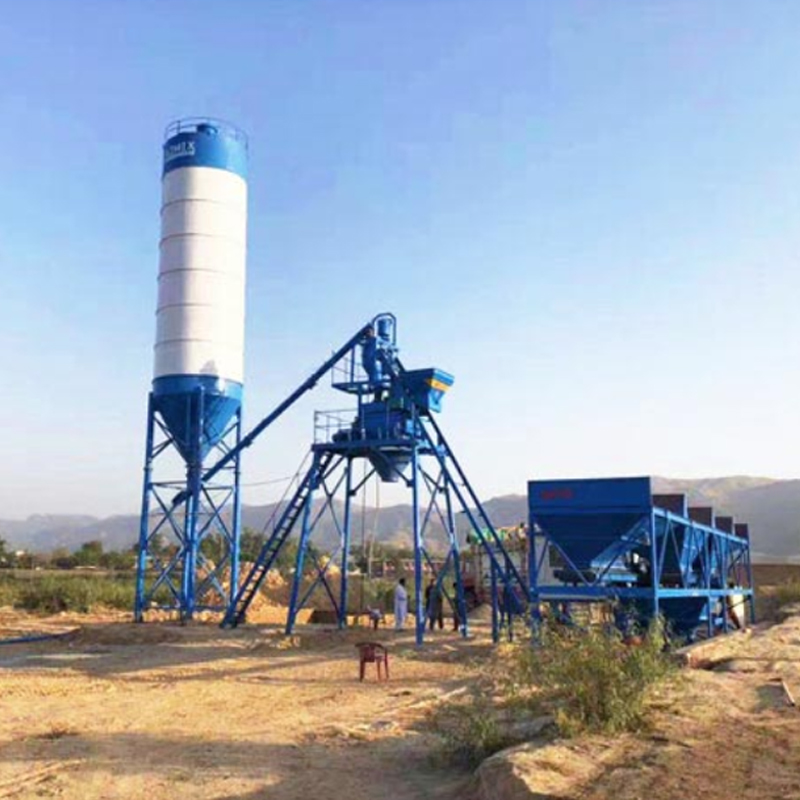

1. The Description of HZS25 Stationary Concrete Batching Plant:
HZS25 stationary concrete batching plant is one of the small-sized series batching plant of Midtop factory. It is Semi-automatic concrete mixing plant which is composed by feeding, batching, mixing, electrical control and steel structure components. It’s suitable for small-scale construction projects, precast yard and commercial concrete companies.
2. Short Features of HZS25 Stationary Concrete Batching Plant:
1. International popular modular compact structure
2. Adapt and apply for the most advanced technologies
3. The mixing system with excellent mixing performance
4. Suitable for small-scale construction project
3.Parameter
| Specification | HZS25 |
| Productivity | 25m3/h |
| Capacity of mixer | 0.5m3 |
| Discharge height | 3.8m |
| Aggregiate bin | 2-3 |
| Capacity of aggregate bin | 4m3 |
| Max. weighing value of aggregate | 1500kg |
| Max. weighing value of cement | 300kg |
| Max. weighing value of water | 150kg |
| Max. weighing value of additive | 40kg |
| Feeding type | Skip hopper |
| Cement silo | 100T |
| Screw conveyor | Optional |
| Control mode | Semi/full automatic control |

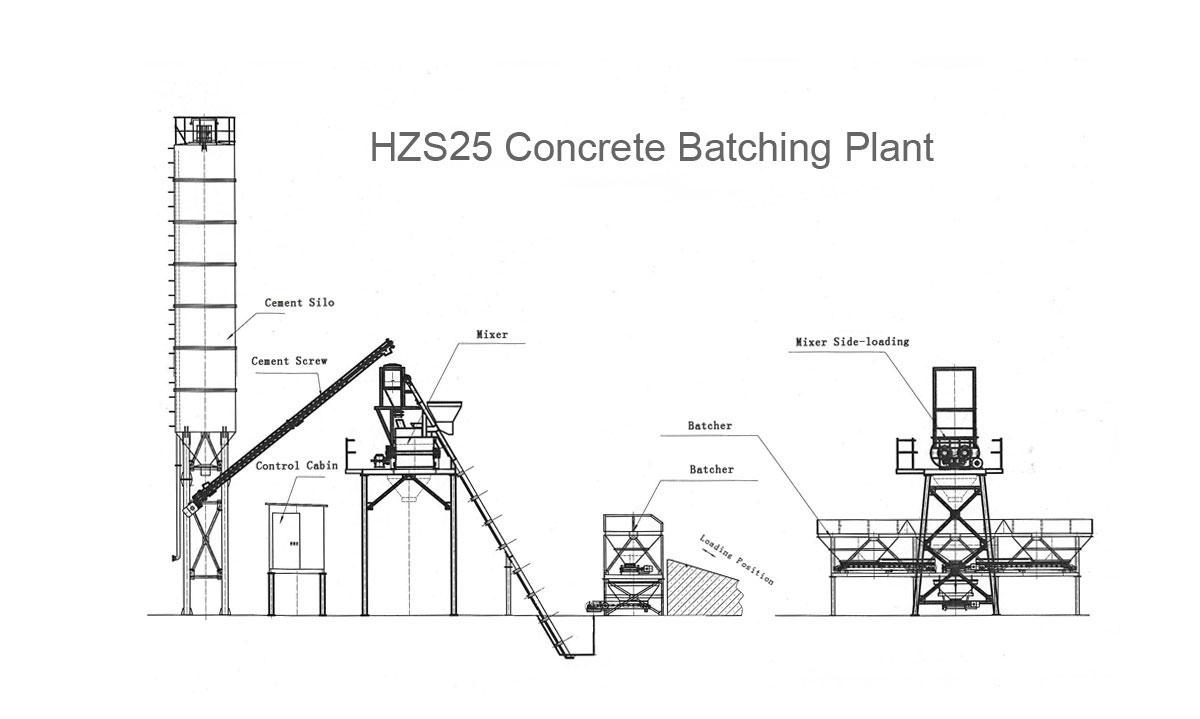

4.Drawing
