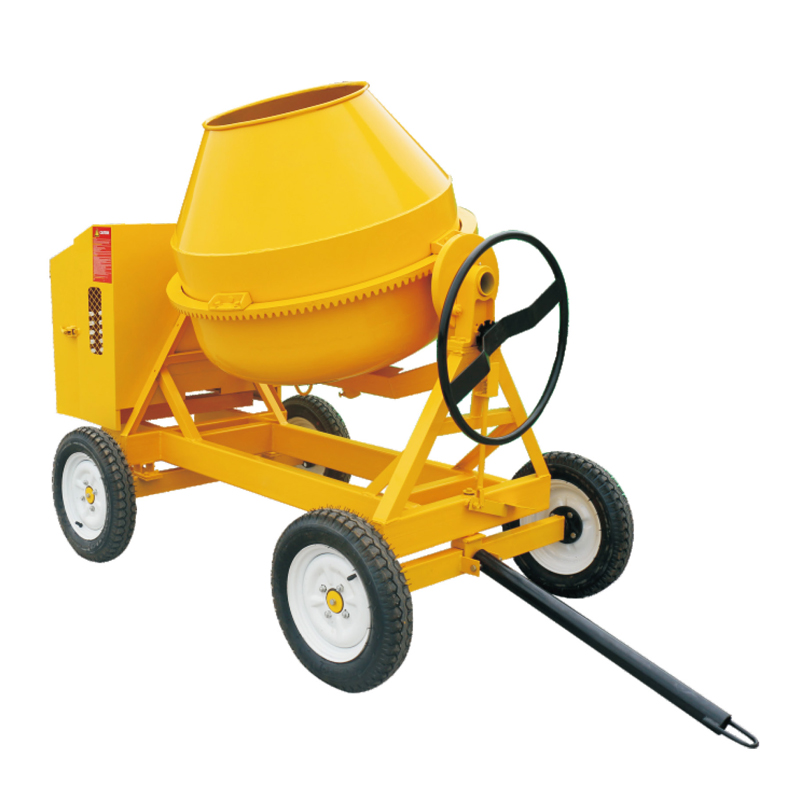

CM500-4D Tilting Drum Concrete Mixer
< Back
   Model    CM500-4D
   Drum capacity    500L
   Mixing capacity    400L
   Productivity    6~8m3/h
   Bags of cement per batch    1.5 bag cement (50kg/bag)
   Drum rotation speed    20-25rpm
   Drum thickness    3mm/4mm (upper/bottom)
   Drum size    Φ950*900mm
   Tyre size and number    4*(4.00-12)



   Engine option		    Air-cooled diesel engine 178FS (6HP)
    Air-cooled diesel engine 186FS (10HP)
    Water-cooled diesel engine R180 (8HP)
    Honda gasoline
    Electric motor (3kw)
   Total weight    370-410kg
   Overall size(mm)    2160*1200*1750
   Packing size(mm)    2060*1060*1250

   Container loading plan		   10sets with Assembled (20GP)
    24sets with Assembled (40HQ)
