1.HZS50(Productivity: 50m3/h) Bucket Charging Concrete Batching Plant
HZS50 Concrete Batching Plant is equipped with JS1000 twin-shaft compulsory mixer and PLD1600 aggregate bin. It transports aggregates with hopper, which saves the footprint. The aggregate bin can be equipped with different numbers of aggregate silos and weighing systems according to the production requirements. In addition, the fully automatic control system automates the production process, meeting the concrete production requirements of different grades and formulations.
2. Short Features of HZS50 Stationary Concrete Batching Plant:
1. It is widely used on small and medium scale building project, road and bridge projects . It’s also an ideal equipment to produce commercial concrete.
2. The main mixer of this series concrete batching plant use JS series twin-shaft concrete mixer which is very reliable.
3. It can be operated and maintained conveniently through high technology control system with the newest design concept.
4. Saving space
5. Cost-effective choice
3.Parameter
Specification | HZS50 |
Productivity | 50m3/h |
Capacity of mixer | 1m3 |
Discharge height | 3.8m |
Aggregiate bin | 3-4 |
Capacity of aggregate bin | 10m3 |
Max. weighing value of aggregate | 3000kg |
Max. weighing value of cement | 600kg |
Max. weighing value of water | 400kg |
Max. weighing value of additive | 50kg |
Feeding type | Skip hopper |
Cement silo | 100T |
Screw conveyor | Optional |
Control mode | Semi/full automatic control |

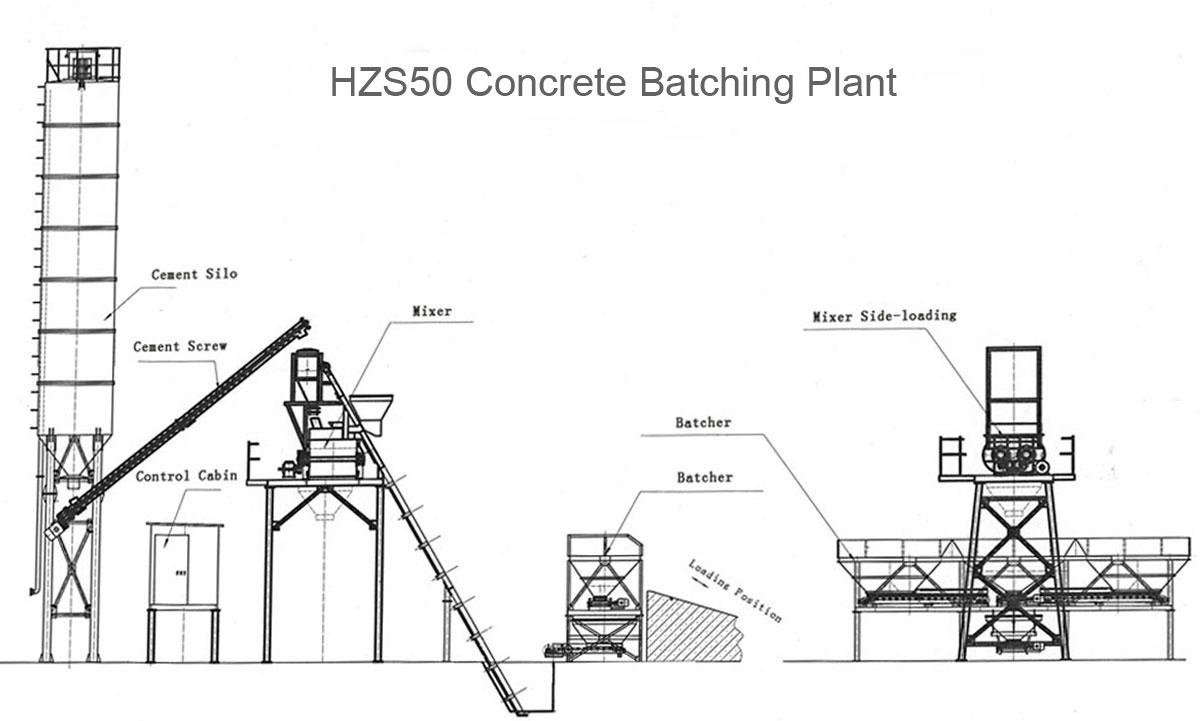

4.Drawing
