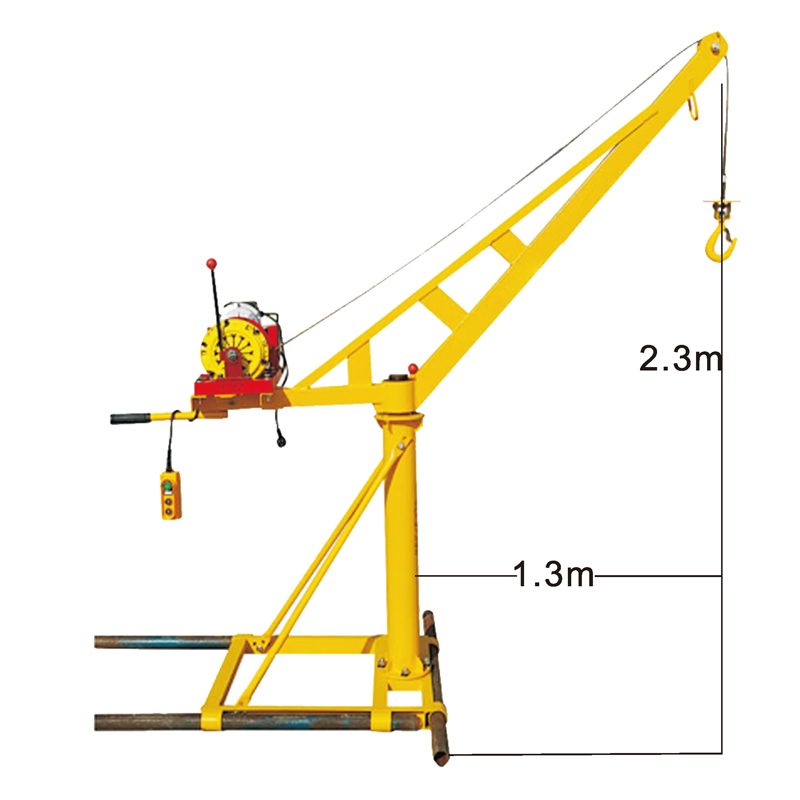

El600 Electric Mini Lifter
< Back
   Model                                               EL600


   Performance
   Payload During double rope 600kg
 Duriing single rope 400kg
   Lifting height During double rope 12.5m
 Duriing single rope 25m
   Max. rotation angle 360°



   Electric winch		   Power 2.3kw
   Voltage 220v/380v, 50HZ/60HZ
   Speed 12-14m/min
   Rope length 25m
   Rope diameter Φ6mm
   Rope typeGalvanized, Rotation resistant, Steel wire rope
   Motor type Aluminum winch




   Host Machine		   Pedestal material 8# Channel steel
   Pedestal size 1000*1000mm
   Pillar height 130mm
   Pillar thickness 3.5mm
   Boom length
 2.4m
   Boom stretching distance 1.3m
   Total weight
 30kg
   Container loading plan 80pcs per 20GP
